ARCHITECTURAL DESIGN STUDIO 2
PROJECT ONE : FAMOUS PEOPLE, FAMILIAR FACES, DIAGRAMMATIC ABSTRACTION
IN A GROUP OF 5, WE ARE TO EXPLORE HOW SPACES ARE CREATED FROM THE MAKING OF ARCHITECTURAL ELEMENTS.
THEN, PRODUCE A VIDEO INTRODUCING A FILM OF AN ARCHITECT.
THE FIRM THAT WE INTRODUCED IS SO-IL
SOLID OBJECTIVES IDENBURG LIU, IT IS A FIRM DIRECTED BY TWO MAIN ARCHITECTS, FLORIAN IDENBURG AND JING LIU. THE BUILDING THAT WE STUDIED IS KUKJE ART GALLERTY, IT IS AN ART EXHIBITION GALLERY LOCATED IN SEOUL, SOUTH KOREA.
KUKJE ART GALLERY
KUKJE ART GALLERY - INTERIOR
BESIDES, WE ALSO PRODUCED SOME STUDY MODELS TO SHOW THE CONCEPT OF THE BUILDING THAT WE ARE STUDYING. THROUGH DIAGRAMS AND DRAWINGS, THEN MODELS.
A SERIES OF STUDY MODELS
HAVING FUN WHEN TRYING TO FIND OUT HOW TO PRESENT OUR MODELS
FOR THE PRESENTATION, WE CHOSE 5 BEST MODELS OUT OF 25 OF OUR STUDY MODELS, AND WE ALSO MADE A "PACKAGING" FOR OUR MODELS TOGETHER WITH A SET OF TECHNICAL DRAWINGS INCLUDING PLANS, SECTIONS AND ELEVATIONS.
BEFORE PRESENTATION, EVERYTHING IS READY
PRESENTATION MODELS ARRANGEMENT
PRESENTATION MODELS ARRANGEMENT
PRESENTATION MODELS ARRANGEMENT
FINAL MODELS, BEST OF 5
FINAL MODELS, PRESENTATION
PRESENTATION GROUP PHOTO
SITE VISIT AT PENANG
SITE ANALYSIS
PROJECT 2A : BAY WATCH
IN A GROUP OF 2
PENANG KERACHUT BEACH
WE ARE TO DESIGN A COASTAL GUARD TOWER FOR A GUARD, AND THE TOWER WE DESIGN SHOULD CORRESPOND TO THE SITE THAT WE HAVE CHOSEN.
FOR THE PRESENTATION, WE PRODUCED A SET OF A SERIES OF PLANS, SECTIONS, ELEVATIONS AND PERSPECTIVES COME WITH A FEW STUDY MODELS AND A FINAL MODEL WITH CONTOUR.
EVERYTHING DONE AND RENDERED BY FREEHAND.
DESIGN DEVELOPMENT AND INSPIRATION
DESIGN DEVELOPMENT AND INSPIRATION
CONCEPTUAL MODELS
MOCK UP MODEL
MOCK UP MODEL
FINAL MODEL
FINAL MODEL
FINAL MODEL
FINAL MODEL
PRESENTATION DAY - MODELS ARRANGEMENT
PRESENTATION DAY - PINNED UP
PRESENTATION BOARD 01
PRESENTATION BOARD 02
PRESENTATION BOARD 03
PRESENTATION BOARD 04
PRESENTATION BOARD 05
PRESENTATION DAY PHOTO
PRESENTATION DAY PHOTO
THROUGH OUT THIS PROJECT, I'VE LEARNED ON HOW TO GENERATE FORM AND SPACE THROUGH ARCHITECTURAL CONCEPTUALISATION ; EXPLORING USER REQUIREMENT AND SIMPLE SPATIAL ORGANIZATION SKILLS AND RESPONDING TO THE SITE CONTEXT THROUGH SITE ANALYSIS.
FINAL PROJECT : RETREAT HOUSE
INDIVIDUAL
PENANG PANTAI KERACHUT
TO DESIGN A RETREAT HOUSE AT PANTAI KERACHUT, A PLACE AFFORDING PEACE, QUEIT, PRIVACY AND SECURITY. THIS IS A RETREAT DESIGN FOR A SINGLE USER, WHICH IS A COASTAL GUARD.
THE MAIN CONCEPT OF THE RETREAT IS IRREGULAR, DERIVED FROM NATURE, IRREGULAR YET IN A SENSE OF ORDER, EVERY SPACE DESIGNED IN THE RETREAT HAS A MEANING AND FUNCTION. THE SPACES OF THE HOUSE ARE INSPIRED BY THE SURROUNDING CONTEXT, MINIMIZING THE AFFECT TOWARDS THE SITE.
FOR FINAL PRESENTATION AND SUBMISSION, A FULL SET OF ARCHITECTURAL DRAWING HAND DRAWN ONTO 2 X A1 SIZE PRESENTATION BOARD AND A MODEL.
FIRST MOCK UP MODEL - PROCESS
FIRST MOCK UP MODEL - PROCESS
FIRST MOCK UP MODEL - PROCESS
FIRST MOCK UP MODEL - PROCESS
DESIGN IMPROVED, TO FIT THE SITE CONTEXT
SECOND MOCK UP MODEL
SECOND MOCK UP MODEL
SECOND MOCK UP MODEL
SECOND MOCK UP MODEL
SECOND MOCK UP MODEL

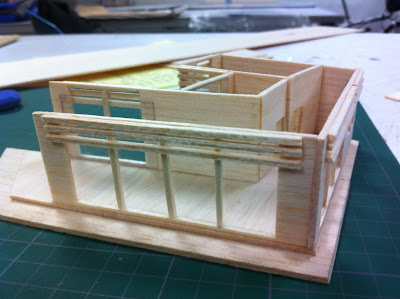

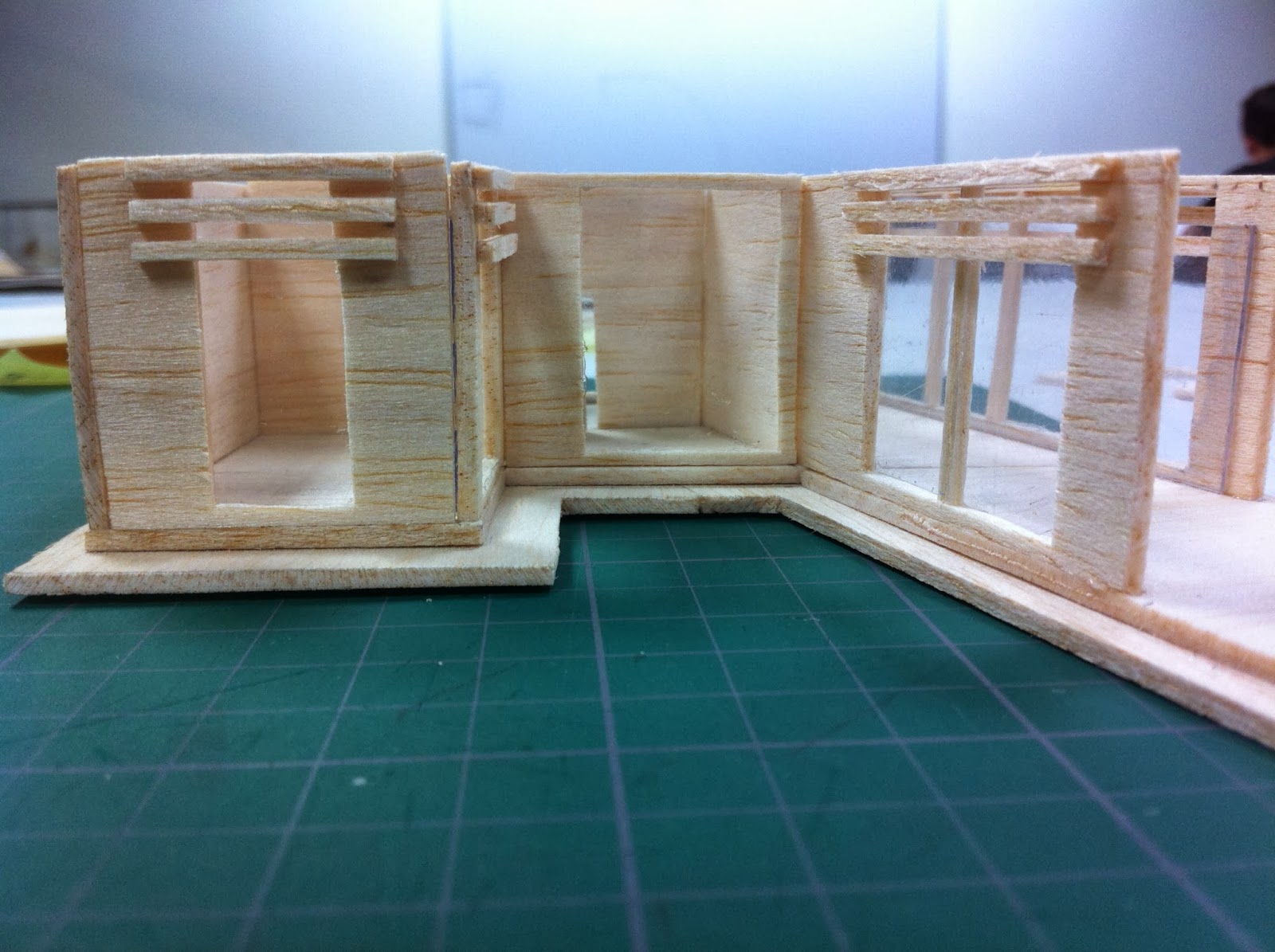

Final Model Made With Balsa Woods - PROCESS
Final Model - PROCESS
EXPERIMENTING STONEWALL TEXTURE
EXPERIMENTING STONEWALL TEXTURE
FINAL MODEL - TEXTURED APPLIED
FINAL MODEL
FINAL MODEL
FINAL MODEL
FINAL MODEL WITH CONTEXT AND HUMAN FIGURE
FINAL MODEL WITH CONTEXT AND HUMAN FIGURE
FINAL MODEL WITH CONTEXT AND HUMAN FIGURE
FINAL MODEL WITH CONTEXT AND HUMAN FIGURE
FINAL MODEL WITH CONTEXT AND HUMAN FIGURE
FINAL PRESENTATION BOARD
THROUGH OUT THE FINAL PROJECT, I'VE LEARNED ON HOW TO TRANSFORM AND APPLY A CONCEPT TO AN ARCHITECTURAL DESIGN. ALSO ON HOW TO FIT A DESIGN AND RESPONDING IT INTO THE SITE CONTEXT, WITHOUT INTERRUPTING MUCH OF THE CONTEXT. OTHER THAN THAT, UNDERSTANDING OF USER REQUIREMENT IS ALSO A IMPORTANT THING TO CONSIDER IN THE DESIGN PROCESS, WE NEED TO DESIGN AND ACHIEVE THE KIND OF SPATIAL QUALITIES THAT THE USER WOULD LIKE TO EXPERIENCE.
BY DOING MY PRESENTATION BOARDS MANUALLY, I'VE DEVELOPED SOME SKILLS OF LAYOUT PLANNING OF A PRESENTATION BOARD, AND ALSO DEVELOPED SKILLS ON DRAWING AND RENDERING.
AFTER THE VERBAL PRESENTATION TO THE EXTERNAL REVIEWER, I'VE LEARNED ON HOW TO PROPERLY VERBAL PRESENT A PROJECT.
